Frequently Asked Question

How to use CardDesiree CS for batch print?
Last Updated 6 years ago

1. Create a data by Microsoft Office Excel, SQL or any of database applications.
2. Open CardDesiree CS and add ID, Text1, Text2, Resin1 Text1 and Barcode1 for data input3. Press Connect Database to get data from database.4. Click ODBC Administrator.5. Click Add to do the access setup.6. Select source. (The database that the DB Maker creates is *.mdb.) 7. Input the Data Source Name (which you created by DB Maker) and select the Database, and then click OK. 8. Select the data Sources and click Next. 9. Click available table and Finish. 10. Work out the source mapping.

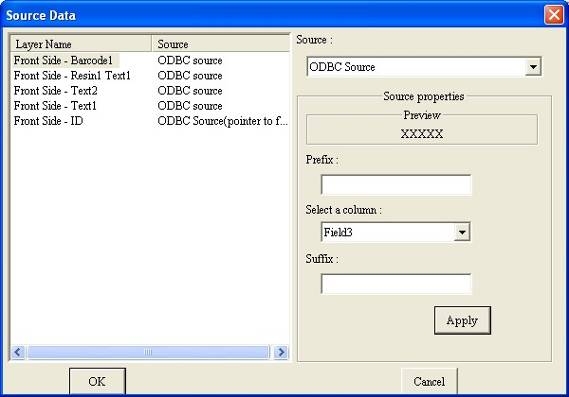

(1) Point to ID.
(2) Select Source- ODBC Source (printer to file name).
(3) Browse file folder. i.e. C:\\Documents and Settings\PA-3\Desktop\.
(4) Select column- Field1.
(5) Input the file extension name.
(6) Click Apply. (7) Point to Text1.
(8) Select Source- ODBC Source(printer to file name). Select column- Field5. (9) Point to Text2.
(10) Select Source- ODBC Source(printer to file name).
(11) Select column- Field2. (12) Point to Resin1 Text1.
(13) Select Source- ODBC Source(printer to file name).
(14) Select column- Field4. (15) Point to Barcode1.
(16) Select Source- ODBC Source(printer to file name).
(17) Select column- Field3.
11. Click OK button to input data.

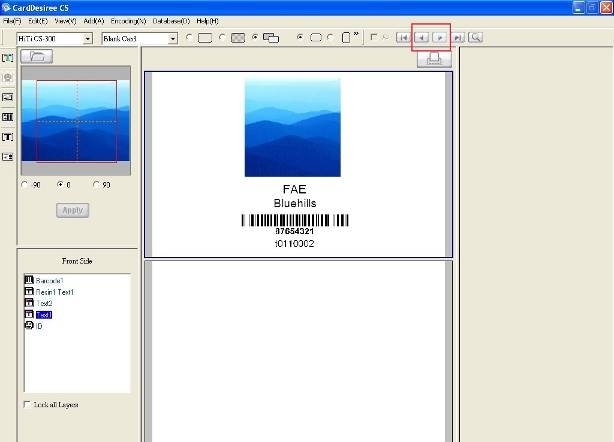

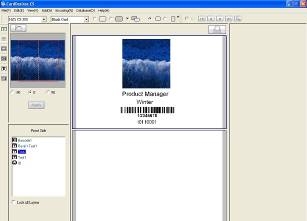

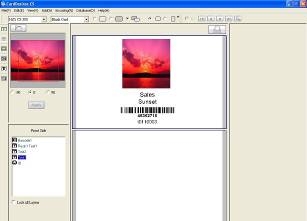

12. Preview ID and all data from the forward and backward button.
13. Click Print.
