HD: How to set a privacy zone for HD cameras?
Last Updated 9 years ago
Privacy zone block the area that you want to keep it as private. You can setup it by following the steps below.
Step 1:

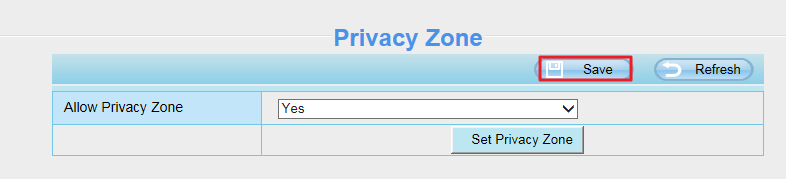

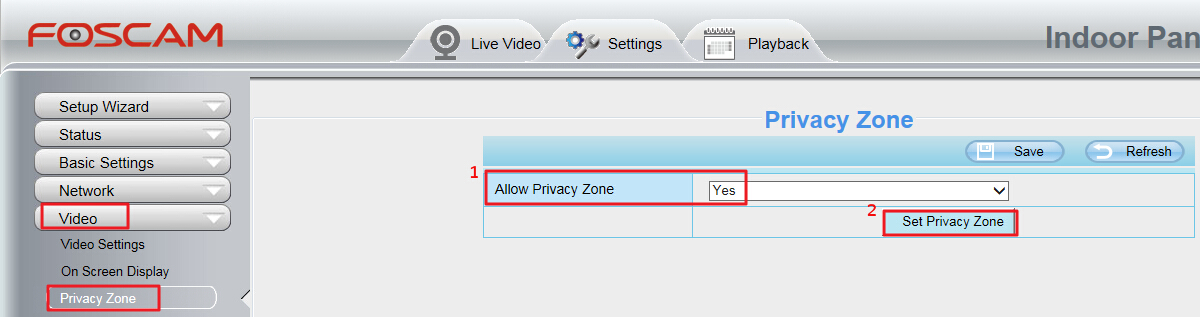

Go to Settings tab, browser to Video -->Privacy Zone.
Drop down the Allow Privacy Zone option and choose Yes.
![](/file.php?key=jqzmcqdief52gxdwhhh1ktvfpadrih4u&expires=1722124800&signature=c44b065cd28df805989828e5e7ea15f27810cdde&disposition=inline&id=395)
Step 2:

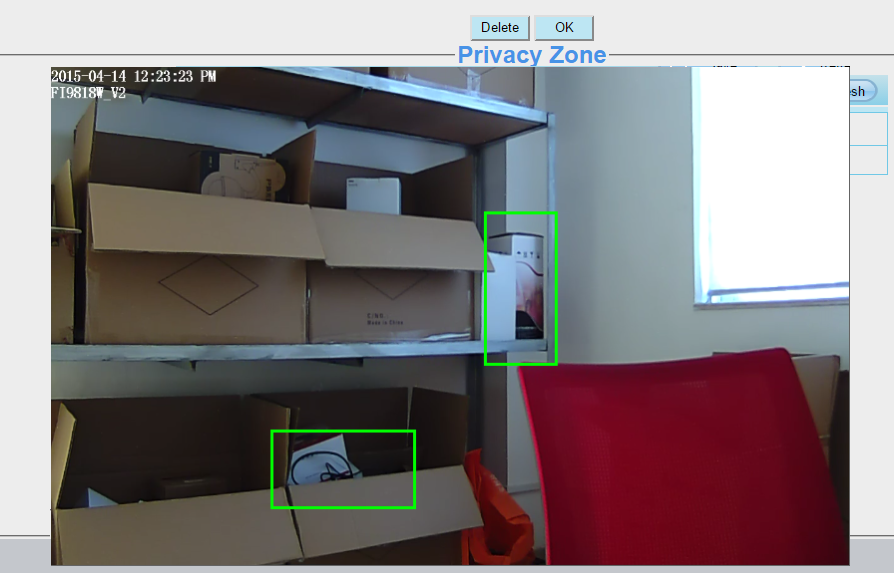

Click Set Privacy Zone button, a living video window will pop up for you. Please left click your mouse and hold to drag a zone. Multiple zones can be set, you may like to drag more zones. Then click OK and remember to click Save.
![](/file.php?key=lkkyx8awg2j1lxl129bdwltujuultxua&expires=1722124800&signature=c0aa78886bf2c82863ad9ef70229f53c17f05bfb&disposition=inline&id=396)
![](/file.php?key=r4wjr2grgqfxvqxz-luxv3uekjjkngvw&expires=1722124800&signature=cb9c177d7562647facd8fadcee5df4fb14f57dd6&disposition=inline&id=397)
Step 3:

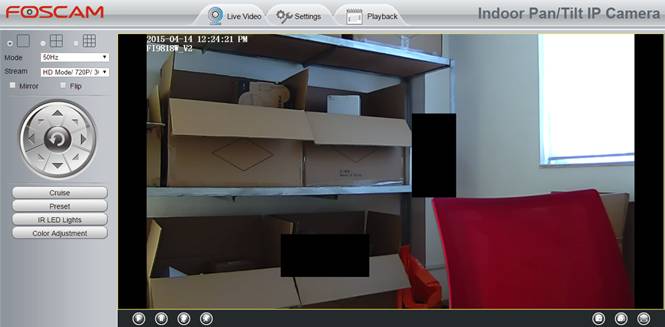

Back to Live Video page to check, and you’ll see the privacy zone is blocked.
![](/file.php?key=i26saokzis3msdwgpjgyxyn7edogobx4&expires=1722124800&signature=9f06d230f8af0562d49f6920724c413ad129d91e&disposition=inline&id=398)
End
Step 1:
Go to Settings tab, browser to Video -->Privacy Zone.
Drop down the Allow Privacy Zone option and choose Yes.
Step 2:
Click Set Privacy Zone button, a living video window will pop up for you. Please left click your mouse and hold to drag a zone. Multiple zones can be set, you may like to drag more zones. Then click OK and remember to click Save.
Step 3:
Back to Live Video page to check, and you’ll see the privacy zone is blocked.
End
