DIR-895L – How to Setup SingNet VLAN?
Last Updated 3 years ago

Before we start to setup the Router - download the compatible Firmware for the setup.
After download, kindly unzip.

Publish Date Language Version Download
09/28/2016 English 1.12B05 link
Modifications and Bug Fixes - Supports WAN VLAN, MU MIMO -Support IQoS

Here's how to setup DIR-895L to work with SingNet VLAN:

Step 1:

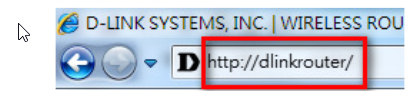

Open an Internet browser (such as Internet Explorer) and enter http://dlinkrouter, http://dlinkrouter.local or http://192.168.0.1 into the address bar.

Step 2:

Enter your login information. If you have not changed the default settings, the password field should be left blank. Click Login.

Step 3:

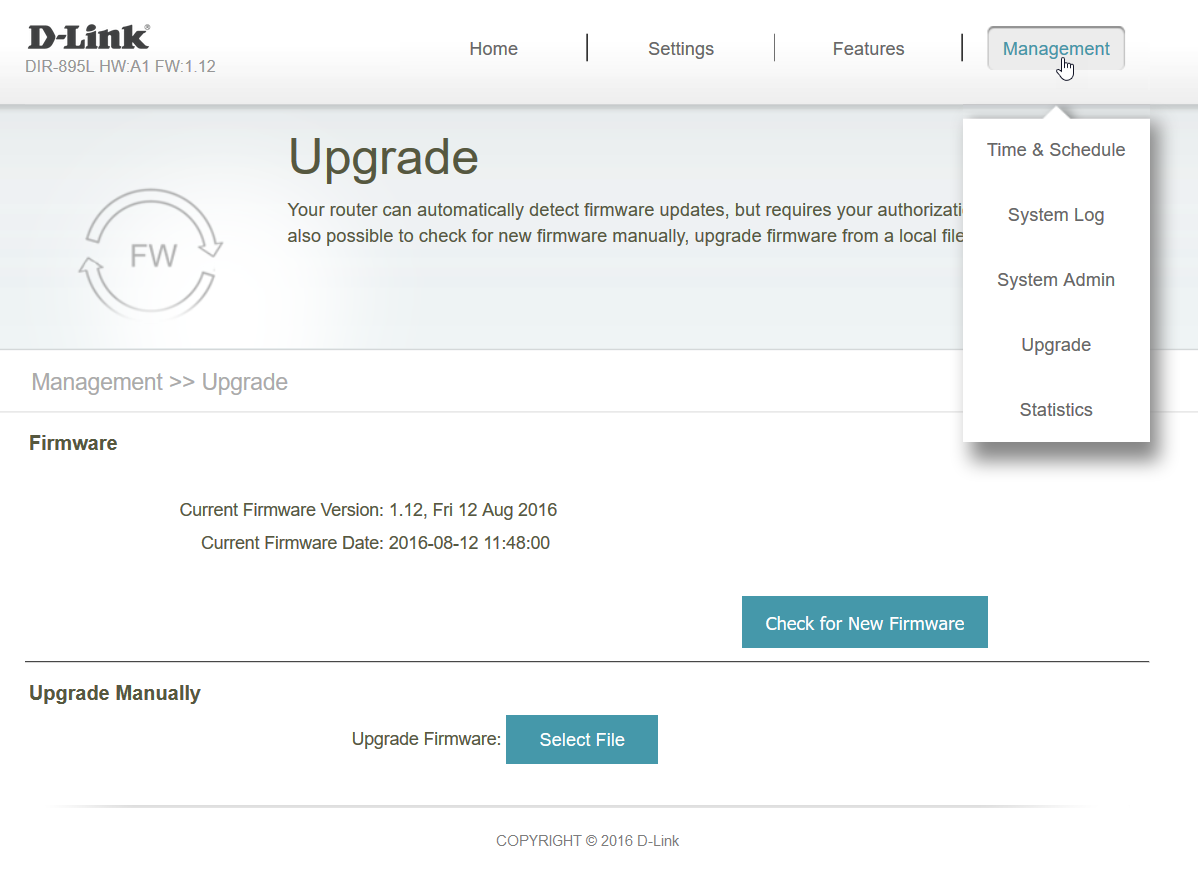

a) Upgrade the Firmware by going to top menu > Management > Upgrade, then Select File and look for the unzip firmware.
Upload and upgrade. (Reboot will occurs automatically)


b) After Upgrade done, login to the router again. From top menu, click the Settings tab at the top of the page and then click Internet from the menu list.

Step 4:

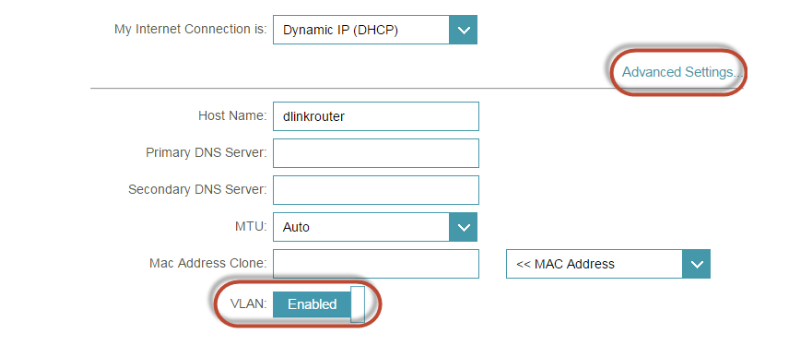

a) Click on Advanced Settings.
b) Select Enable beside VLAN.

Step 5:

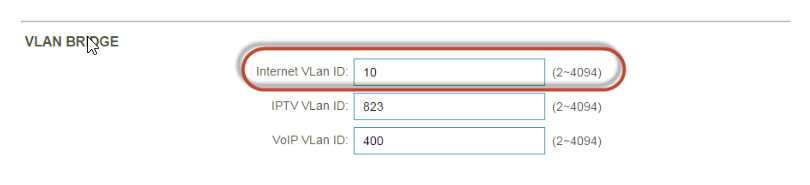

Enter 10 in the box beside Internet VLan ID.
(Remark: For IPTV VLan ID and VOIP VLan ID, Please check with your Service provider.)

Step 6:

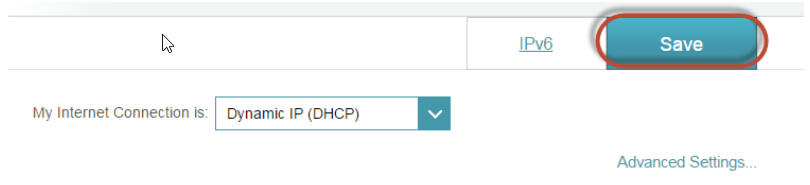

Click on Save.
